Mesa Boogie Subway D-800 Bass Head

Tube Warmth, Tunable Power and Perfect Portability

You spoke, we listened. In direct response to player feedback and the longstanding demand for a more powerful version of our WalkAbout™ Bass Head. The answer: the WD-800™ Head. This Head combines the warm, soulful sounding magic of the WalkAbout tube preamp section with the musical Class D Output Power used in our Subway Line (D-800™ and D-800+™), to create the ultimate lightweight hybrid.

As in the original, the inspiring round, fat WalkAbout Tone is joined by comprehensive rotary shelving Tone controls and a semi-parametric EQ, giving you total shaping authority in the preamp. The new WD800 also features the Subway D800 Plus’s highly effective HIGH PASS FILTER and a new POWER AMP DAMPING control, which allow tuning of the sub-low frequencies and power response options respectively. The POWER DAMPING choices enable you to tailor the tracking and feel of the power amp. The LOW setting produces a looser, more relaxed and blooming character reminiscent of Tube power. HIGH tightens the low end, adding punch and accuracy in tracking, while MEDIUM provides a blend of these opposite ends of the power response spectrum.

The WD-800 can perform as a stand-alone Head or be mounted in 2 Spaces within standard 19” Racks by attaching the optional Rack Ears (not included). Whether you’re looking for a lightweight new main rig to replace your heavy linear amp with a bigger, wider sound and more complex harmonic content than the lightweight options you’ve tried, or just a compact, portable head for everyday gigging and recording that will fill the room with luscious Tone, the new WD-800 covers bases with power and versatility to spare. Not exactly a WalkAbout or a Subway, but rather everything great about both combined in a super-responsive compact, lightweight, big-power platform, just as you ordered!

Features

• Wattages – 800 Watts @ 4 or 2 Ohms / 400 Watts @ 8 Ohms
• Speaker Outputs – 2 – Speakon Output Jacks (no 1/4 speaker jacks) – 8, 4 or 2 Ohms
• Graphic Eq Reverb Fx Solo – Variable Voicing (Flat to Vintage Scoop), Fully Active 4-Band EQ plus Deep Switch (for enhanced low-end)
• Cabinet Simulation Direct Live recording Output – Balanced XLR Out with Pre/Post, Line/Mic & Ground Lift Switches

Specs

Category	Head
Wattage	800 Watts @ 4 or 2 Ohms / 400 Watts @ 8 Ohms

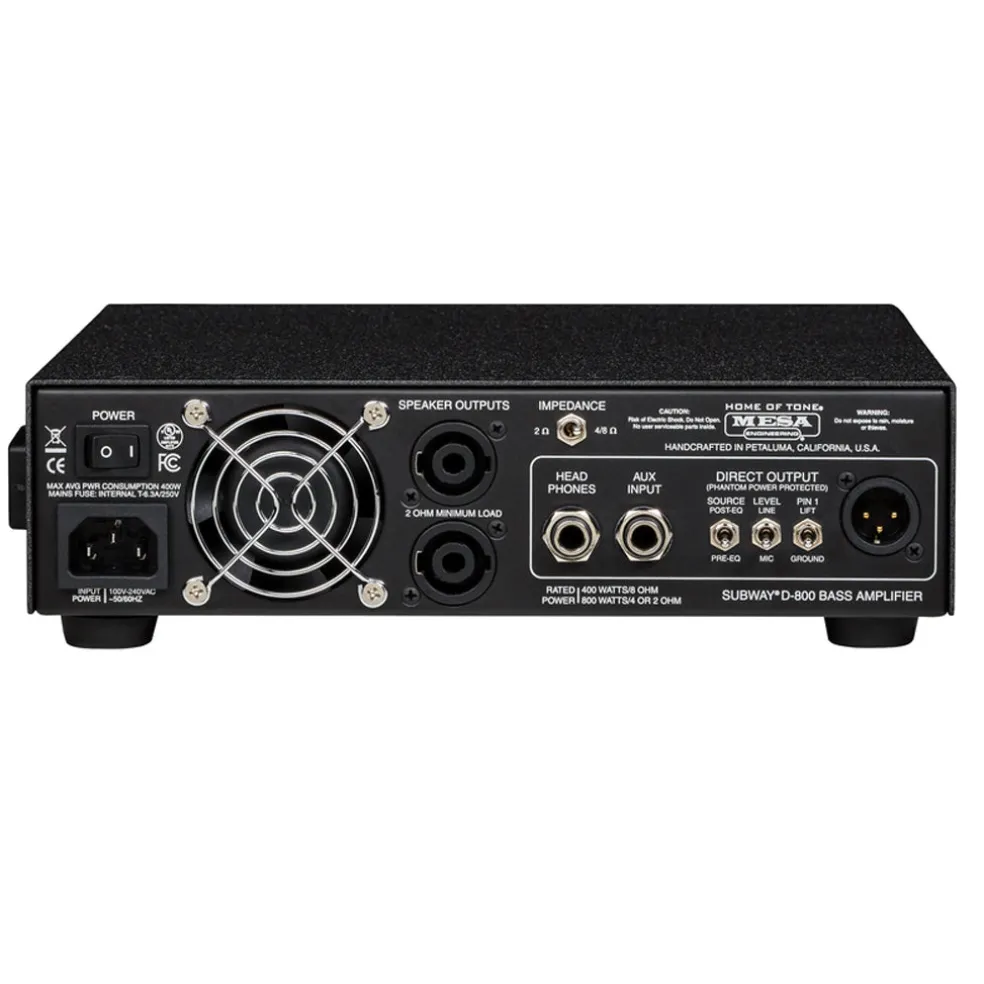

Outputs	2 X Speakon Output Jacks (no 1/4 speaker jacks) – 8, 4 or 2 Ohms; Balanced XLR Out with Pre/Post, Line/Mic & Ground Lift Switches, USB Power Outlet, Headphone Output and Auxiliary Input
Preamp Tubes	1 X Mesa 12AT7
Power Tubes	Class D Power Amp
Effects Loop	Yes (Fully Buffered Series FX Loop)
Cabinet Construction	Metal (Closed Back)
Weight	3.17kg
Included Accessories	Gig Bag with Shoulder Strap
